EVA Tote vs Crocs Foam: Same Material Family?

Short Answer: Same Family, Different Recipe

The confusion is understandable because both products are closed-cell foams that feel similar to the hand, both are moulded rather than sewn, both float, and both are described loosely as foam. The honest answer is that they share a polymer family and diverge at the formulation stage. Ethylene-vinyl acetate is a copolymer whose properties move a long way with vinyl acetate content, foaming agent load, cross-linking and filler, so the same base polymer produces either a soft cushioning foam or a semi-rigid structural sheet.

The divergence is driven by what each object has to do. A clog is a cushion: it is 8 to 15 millimetres thick, it is compressed by body weight several hundred times an hour, and it must return to shape every time. A tote body is a shell: it is 2.0 to 2.6 millimetres thick, it carries load in bending rather than in compression, and it must not creep when a bottle leans against a wall for an afternoon. Those are opposite design goals and they produce opposite formulations.

What EVA Actually Is

Ethylene-vinyl acetate is a copolymer of ethylene and vinyl acetate, and the vinyl acetate content is the dial that moves everything. At low vinyl acetate content the material behaves closer to polyethylene: stiffer, more crystalline, with a higher melting point. At high vinyl acetate content it becomes more rubbery, more flexible and more tolerant of fillers. Commercial grades for moulded articles typically run between 9 and 28 percent vinyl acetate, and that range alone accounts for a large part of the difference between a soft foam and a semi-rigid shell.

On top of the base polymer comes the compound. A foaming agent creates the cell structure, a cross-linking system sets the cell walls so the foam does not collapse, fillers adjust cost and density, a pigment sets colour, and a stabiliser package handles ultraviolet exposure and heat. Two compounds can share a base polymer and differ in density by a factor of four, which is roughly the gap between the material in a clog and the material in a tote body.

Reading that table makes the answer to the original question obvious. A clog compound is a high-foam, low-filler, soft formulation. A tote compound is a low-foam or unfoamed, higher-filler, stabilised formulation. Both are sold as EVA and neither would work in the other product.

Property by Property: Where the Numbers Separate

The comparison below is the one worth quoting, because it turns a qualitative argument into numbers. Density and hardness are the two that matter most and the two that are most often confused, since a soft foam and a firm shell can be the same colour and the same thickness to the eye.

Durometer hardness is measured by indentation methods published by ASTM International under D2240, and apparent density of cellular material is covered by the International Organization for Standardization in the ISO 845 series. Neither number appears on a retail hangtag, which is why the two materials get confused, but both are on the compound data sheet and both are worth asking for.

Why a Tote Cannot Be Made From Clog Compound

Take the thought experiment seriously and the failure is immediate. A body moulded from a soft cushioning foam at 0.25 grams per cubic centimetre and 55 Shore A, in a 2.4 millimetre section, would fold under its own weight when empty, would deform permanently under a two litre bottle within an hour, and would creep in a warm car boot within an afternoon. It would also tear at the handle roots, because tear strength follows density and a soft foam has very little of it.

The reverse direction fails just as clearly. A body moulded from a tote compound at 75 Shore A and 10 millimetres thick would be a rigid brick on the foot, would not flex at the ball of the foot, and would produce blisters within an hour. The two products are not variations of one thing; they are two different answers drawn from the same family of chemistry.

Moulding: Similar Machines, Different Cycles

Both products are moulded rather than cut and sewn, and that is the real source of the family resemblance. A closed-cell compound is melted, injected or pressed into a tool, cooled, and ejected as a finished shape with no seams to leak and no stitching to fail. The difference is in the cycle: a clog is thick, so it needs a long cooling phase to avoid collapse when it is demoulded, and it is often foamed in the tool. A tote body is thin, so it cools quickly and can be cycled faster, but it needs a tool that holds a large, thin, perforated panel flat without warping.

• Clog tooling: thick sections, foaming in the tool, long cooling, cycle times of 3 to 6 minutes per pair of cavities.
• Tote tooling: thin sections, no intentional foaming, short cooling, cycle times of 60 to 150 seconds per shot.
• Perforations are formed in the tool on a tote, which is why hole diameter and edge quality are consistent across a batch.
• A tote tool is larger and more expensive than a clog tool of the same material, because the projected area is far greater.
• Both benefit from a single-material design: no glue, no stitching, and nothing that can delaminate in service.

The perforation point is worth expanding because it is the visible difference. Holes are formed by pins in the tool, and the pin diameter sets both the drainage rate and the smallest item the bag retains. A hole at 8 to 12 millimetres drains a dunked body in four to ten seconds and still retains anything larger than a coin, which is the balance most bodies are designed around.

Temperature, UV and Ageing Compared

Ageing is where the two products diverge most in practice, because they live in different environments. A clog spends its life on a foot, in the dark, at roughly 30 degrees, flexing. A tote spends its life in direct sun on sand or a deck, at 40 to 65 degrees at the surface, largely static. Ultraviolet exposure and sustained heat, not flexing, are what age a tote, and the stabiliser package is formulated accordingly.

One ageing behaviour is shared and worth stating plainly: neither material absorbs water, because both are closed cell. That is the property that makes a moulded body immune to mildew and to the wet-dry cycle that destroys fabric bags, and it is the property that a buyer should value above hardness or density when comparing against a sewn alternative.

What the Similarity Actually Tells a Buyer

The family resemblance is useful for one specific reason and misleading for another. It is useful because it tells you what to expect from the material class: closed cell, so it floats and does not absorb; moulded, so there are no seams to leak; chemically inert at ambient temperature, so salt, chlorine and sunscreen do not attack it; and thermoplastic, so it is recyclable in principle and repairable in limited ways in practice.

It is misleading if it leads a buyer to expect clog softness in a bag or to assume that any EVA product behaves like any other. The compound is the product. A specification that names only the polymer is not a specification at all, and the three numbers worth asking for are density, durometer hardness and the stabiliser approach for outdoor use.

• Ask for density in grams per cubic centimetre. Below 0.5 is a cushioning foam, not a structural body.
• Ask for durometer hardness and the method. ASTM D2240 at 65 to 80 Shore A is the structural range.
• Ask what stabiliser package is used for outdoor colourways, and which light fastness grade the pigment reaches.

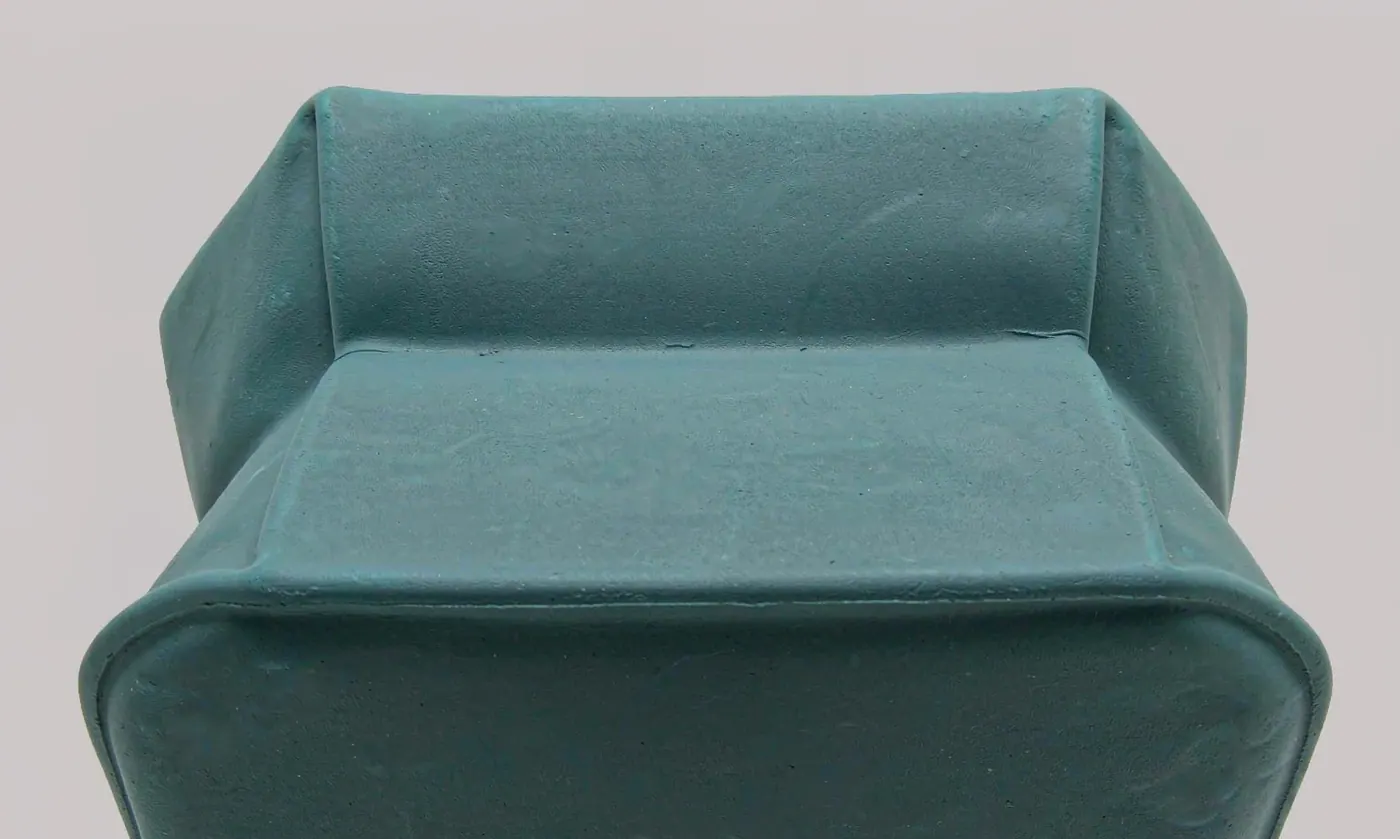

• Ask for wall thickness in millimetres at four points, because thin sections and low density compound each other.
• Ask whether the body is foamed or solid. A structural tote body is solid or very lightly foamed.

Where Each Material Belongs

The summary is short. Soft closed-cell foam belongs anywhere the job is cushioning, repeated compression and skin contact: footwear, mats, kneeling pads, grip sleeves. Firm closed-cell or solid compound belongs anywhere the job is carrying, standing upright and surviving sun: totes, trays, bucket shapes, moulded bottoms on soft bags. Anything that asks one to do the others job will fail, and the failure will look like a quality problem when it is really a specification one.

That last point is the practical takeaway for anyone sourcing in this category. When a moulded body slumps, creases or tears at the handle, the cause is almost never workmanship. It is a compound chosen for the wrong job, usually a soft low-density formulation used in a thin structural section because it looked and felt right in a sample.

How to Tell Them Apart Without a Data Sheet

Most people will never see a compound data sheet, and they do not need one. Four physical tests separate a soft cushioning foam from a structural body in about thirty seconds, and all four work on a finished product in a shop.

The first test is the reliable one. A thumbnail pressed firmly into a wall that leaves a visible dent for more than a second indicates a compound below the structural range, and the same bag will slump under a bottle within an afternoon. It is worth doing on any body being bought for sand, boat or resort use, because it is the fastest available proxy for a laboratory number.

The fourth test explains why the two materials can look identical and behave differently. A heavily foamed compound has visible open cells at a cut edge and a matte, slightly spongy feel; a structural body has a tight, fine cell structure that reads as almost solid. Both are closed cell in the sense that matters for water, and only one is stiff enough to stand up under load.

Care Differences That Follow From the Material

Because both materials share a closed-cell structure, the care routine is almost identical and short. Neither absorbs water, neither mildews, neither needs a wash cycle, and both are damaged by the same things: solvent cleaners, sustained heat above about 70 degrees, and prolonged direct sun when not in use.

• Rinse with fresh water after salt, chlorine or sand exposure, which takes about sixty seconds.
• Use mild dish detergent for marks and never a solvent spray, which dulls the surface permanently.
• Do not machine wash either. A cycle flexes the body against itself and can crease it permanently.
• Store dry, open and out of direct sun, hung by both handles or stood upside down.
• Check handle roots and base rails once a season, which are the two places that fail first.

One care difference is real and worth noting. A soft foam body will take a permanent indentation from anything stored inside it under pressure for months, so a clog-like compound needs to be stored empty. A structural body tolerates being stored with contents, although it is still better stored open, because anything left inside that is damp will stay damp and whatever it is will eventually smell.

The second test is the one that predicts service life. A compound that recovers immediately from a bend has a working cross-link structure and will keep doing so for years; one that recovers slowly and shows a whitening line at the fold is already failing locally, and that fold is where a crack will start. Whitening under bend is the earliest visible sign of a compound being asked to do a job it was not formulated for.

Programme Notes

Compound and construction detail is set out in the EVA tote materials guide, the full category background sits in the injection-molded EVA tote guide, and drainage and hole geometry are covered in the perforated EVA tote range. QUANZHOU JUNYUAN BAGS has run waterproof bag programmes since 2014 with a founding team in this trade since 2004, and develops compounds against named density and hardness targets.

Monthly output runs at 200,000 units verified by SGS, operations follow BSCI and ISO 9001, materials are screened for REACH and California Prop 65, and every bulk shipment is inspected at AQL 2.5 before release. Programme minimums begin at 500 pieces per design and colour, with sampling at 6 to 10 working days and bulk at 35 to 50 days from approved sample and deposit, shipped FOB Xiamen or DDP to more than 100 countries. Send your target density, hardness, wall thickness and quantity to service@junyuanbags.com.

People Also Ask

Are EVA totes made from the same foam as clogs?

Same polymer family, different compound. A clog is soft and light at 55 Shore A; a tote body is structural at 65 to 80 Shore A.

Why is a clog softer than an EVA tote?

Because it is designed for compression under a foot. A tote wall of 2.0 to 2.6 millimetres has to carry load in bending and stand upright.

What density should an EVA tote body be?

About 0.55 to 0.85 grams per cubic centimetre. Below 0.5 is a cushioning foam and will slump in a thin structural section.

Can a tote be made from clog compound?

No. It would fold under its own weight, creep under a bottle within an hour and tear at the handle roots.

Do both materials float?

Yes. Both are closed cell, so neither absorbs water. That is the shared property that matters for a beach or boat bag.

Which material lasts longer outdoors?

The tote compound, because it carries a heavier ultraviolet stabiliser load and is rated for 1,200 to 2,000 hours of sun a year.

Frequently Asked Questions

Q1. Are EVA totes and foam clogs the same material?

They share a polymer family and use different compounds. A clog is soft and light, a tote body is firm and structural.

Q2. What is the difference in density?

A clog compound runs at 0.20 to 0.30 grams per cubic centimetre, a tote body at 0.55 to 0.85, roughly three times denser.

Q3. What hardness should an EVA tote be?

65 to 80 Shore A measured under ASTM D2240. A clog sits at 50 to 65 Shore A, which is too soft for a structural wall.

Q4. Why cannot a clog compound be used for a bag?

It would fold when empty, creep under a two litre bottle within an hour, and tear at the handle roots where tear strength matters most.

Q5. Is ethylene-vinyl acetate always foam?

No. The base polymer can be foamed lightly, foamed heavily or used solid, and the choice is made at the compounding stage.

Q6. Do both materials absorb water?

Neither does. Both are closed cell, which is why a moulded body cannot mildew and dries within minutes of being tipped out.

Q7. How thick is a tote wall compared with a clog?

A tote wall is 2.0 to 2.6 millimetres against 8 to 15 millimetres for a clog, which is why the tote compound has to be stiffer.

Q8. Which one needs more ultraviolet stabiliser?

The tote. It sees 1,200 to 2,000 hours of direct sun a year, while a clog spends most of its life shaded by the foot.

Q9. Can the material be recycled?

It is thermoplastic, so it can be reprocessed in principle. In practice collection and sorting are the limiting factors, not the polymer.

Q10. What should a buyer ask for on a data sheet?

Density in grams per cubic centimetre, durometer hardness with the test method, wall thickness at four points, and the light fastness grade.
