A durable water repellent finish and a waterproof membrane are not two grades of the same thing, and only the membrane stops water under pressure. A DWR finish is a surface treatment on the outer face cloth that raises the contact angle of a droplet to 140 to 150 degrees, so water beads and runs off instead of soaking in; it is graded by the AATCC 22 spray test on a 0 to 100 scale and it typically survives 10 to 30 wash cycles or one to three field seasons. A waterproof membrane is a continuous film of TPU, PU or ePTFE laminated behind the face cloth, 0.05 to 0.25 millimetres thick, and it is graded by hydrostatic head in millimetres under ISO 811 or AATCC 127, from 1,000 mm for a shower shell to 20,000 mm for a submersible body. A pack can score 100 on the spray test and still pass water at 0.05 bar, because a beading surface tells you nothing about a barrier. Buyers should ask for the hydrostatic figure and the seam method, and treat the finish as a maintenance item rather than a waterproof claim.
The Short Answer: One Repels, One Blocks
The distinction is about where the water is stopped. A finish changes the surface energy of the outermost fibres so a droplet cannot spread and wet them; the water is still in contact with the textile and can be driven through by a few kilopascals of pressure or by prolonged contact. A membrane is a physical barrier with no open path: water stops at a film, and how much pressure that film takes is a measurable number in millimetres of water column.
This is why the two are tested with different instruments and reported in different units, and why a hangtag quoting only a spray rating is withholding the figure that matters. The spray test takes 30 seconds and grades appearance; the hydrostatic test takes minutes and grades failure. On a backpack the load case that matters is a wet base panel pressed against a wet surface, or a body sitting in a few centimetres of water in the bottom of a boat, and both apply pressure to the barrier rather than droplets to a surface.
- A finish is graded 0 to 100 by AATCC 22 spray, or 1 to 5 by ISO 4920, and both grade how the surface looks after 25 to 30 millilitres of water is sprayed at it.
- A membrane is graded in millimetres of hydrostatic head under ISO 811 or AATCC 127, and 1,000 millimetres equals 9.8 kilopascals, which is about 0.098 bar.
- A pack that beads water perfectly can still leak at 500 millimetres of head, because the finish is not the barrier and never was.
- The seam, not the face cloth, is usually the weakest point once a real membrane is present, so the seam method belongs on the same line of the specification.
What a DWR Finish Actually Is
A durable water repellent finish is a very thin layer of low-surface-energy chemistry deposited on the outer face of the textile, at an add-on of roughly 5 to 30 grams per square metre of solids. Three chemistries cover most of the market: fluorinated polymers of the C6 or C0 generation, silicone and siloxane systems, and paraffin or dendrimer hybrids. The fluorinated types give the highest initial contact angle, around 145 to 150 degrees, and the best resistance to wetting by oily liquids. Silicone types give 130 to 140 degrees and are softer and cheaper but pick up dirt more readily. Paraffin types are the cheapest and the shortest lived, at 110 to 125 degrees.
Application is a pad or spray step followed by drying and heat setting, typically 150 to 170 degrees Celsius for one to three minutes on a production line, and the heat step is what makes the finish durable rather than merely present. Service life on a backpack is governed by abrasion far more than by washing, since a strap or a base panel sees rubbing on every outing and the finish is mechanically removed from the high spots of the weave long before it degrades chemically. In field terms, a mainstream C6 finish holds useful beading for one to three seasons, meaning 200 to 600 hours of use, and contact angle falls below 90 degrees within 5,000 to 15,000 Martindale cycles on a high-wear panel.
| Finish chemistry | Initial contact angle | Wash durability | Add-on (g per square metre) | Unit cost band |
|---|---|---|---|---|
| C6 fluoropolymer | 145 to 150 degrees | 20 to 30 home washes | 8 to 20 | 0.30 to 0.55 USD |
| C0 fluorinated, PFAS-free | 130 to 140 degrees | 10 to 20 home washes | 10 to 25 | 0.35 to 0.70 USD |
| Silicone or siloxane | 130 to 140 degrees | 10 to 15 home washes | 5 to 15 | 0.15 to 0.35 USD |
| Paraffin hybrid | 110 to 125 degrees | 3 to 8 home washes | 15 to 30 | 0.12 to 0.25 USD |
| Dendrimer or hybrid boost | 135 to 145 degrees | 15 to 25 home washes | 6 to 18 | 0.40 to 0.80 USD |
The regulatory picture is the reason most programmes are moving off the older chemistries. Long-chain C8 chemistry is restricted under the REACH framework administered by ECHA, and several US states are restricting perfluoroalkyl substances in textiles. The practical alternative is a C0 or silicone system that costs 0.10 to 0.25 USD more per unit and gives up 10 to 15 degrees of initial contact angle. Background on the substance class is published by the US EPA perfluoroalkyl programme.
- A finish is a maintenance item. Plan to re-proof a pack in the field every one to two seasons, at 50 to 100 millilitres of spray per body.
- Contamination kills a finish faster than abrasion: sunscreen, insect repellent and body oil from the harness all lower the contact angle by 20 to 40 degrees.
- Residue from ordinary detergent is the most common cause of apparent finish failure, and a technical wash restores 20 to 30 degrees with no new chemistry at all.
What a Waterproof Membrane Does
A membrane is a continuous film with no holes through it, laminated to the back of the face cloth or extruded onto it. Four materials appear on waterproof packs. Polyurethane coating is the cheapest and thinnest, applied as a liquid at 20 to 60 grams per square metre, giving 1,000 to 5,000 millimetres of head. Thermoplastic polyurethane film is the mainstream choice at 0.05 to 0.25 millimetres and 5,000 to 20,000 millimetres. PVC sheet is heavier and cheaper per unit of barrier, at 0.25 to 0.60 millimetres and 3,000 to 10,000 millimetres. Expanded PTFE sits above 10,000 millimetres and is priced out of most pack programmes.
Two numbers decide whether a membrane is right for a given body. The first is the hydrostatic head, standardised as ISO 811 and measured by raising a water column against one face of the cloth until three drops appear on the other. The second is the weight cost, because barrier thickness is paid for twice, once in grams and once in flexibility. A 0.10 millimetre TPU film adds about 110 grams per square metre, and on a 30 litre body with 1.4 square metres of shell that is 155 grams. A 0.35 millimetre PVC sheet adds about 390 grams per square metre, or 545 grams on the same body, and it folds rather than rolls at low temperature.
| Barrier type | Thickness | Hydrostatic head | Weight per square metre | Where it belongs |
|---|---|---|---|---|
| PU coating, 2-layer | Liquid, 20 to 60 gsm | 1,000 to 5,000 mm | 35 to 70 grams | Shower shells, light daypacks |
| TPU film, 0.05 to 0.10 mm | 0.05 to 0.10 mm | 5,000 to 10,000 mm | 60 to 110 grams | Mainstream waterproof bodies |
| TPU film, 0.15 to 0.25 mm | 0.15 to 0.25 mm | 10,000 to 20,000 mm | 165 to 275 grams | Submersible, rescue, dive support |
| PVC sheet, calendered | 0.25 to 0.60 mm | 3,000 to 10,000 mm | 280 to 660 grams | Heavy duffels, dry bags, price-led lines |
| Expanded PTFE laminate | 0.02 to 0.05 mm | 10,000 to 30,000 mm | 25 to 55 grams | Premium apparel, rarely packs |
Six Properties, Side by Side
Reading both technologies on the same axes is the fastest way to stop confusing them. The two columns share almost nothing: different units, different standards, different failure modes, different cost scales and different service lives. A specification naming both, with a figure for each, can be verified on goods-in.
| Property | DWR finish | Waterproof membrane |
|---|---|---|
| Physical form | Surface layer on the outer fibres | Continuous film behind the face cloth |
| Typical thickness | 0.001 to 0.01 mm of solids | 0.05 to 0.25 mm of film |
| What it stops | Wetting of the outer cloth | Water under pressure |
| Test standard | AATCC 22 spray, or ISO 4920 | ISO 811 or AATCC 127, hydrostatic head |
| Unit of result | 0 to 100 rating, or 1 to 5 | Millimetres of water column |
| Typical figure | 80 to 100 when new | 1,000 to 20,000 mm |
| Main failure mode | Abrasion, oil contamination, detergent | Puncture, hydrolysis of PU, seam leakage |
| Service life on a pack | 1 to 3 seasons, 200 to 600 hours | 5 to 10 years if stored dry |
| Renewable | Yes, re-proof at home | No, replacement only |
| Added unit cost | 0.12 to 0.80 USD | 1.20 to 3.50 USD |
The renewable row carries most of the purchasing decision: a pack that has lost its beading is not damaged and needs 20 minutes with a spray bottle, while a pack with a punctured membrane is finished. The added cost row explains why some bodies are sold with a finish and no barrier at all, since 0.12 to 0.80 USD against 1.20 to 3.50 USD is 4 to 25 percent of a typical unit price.
How Each One Fails

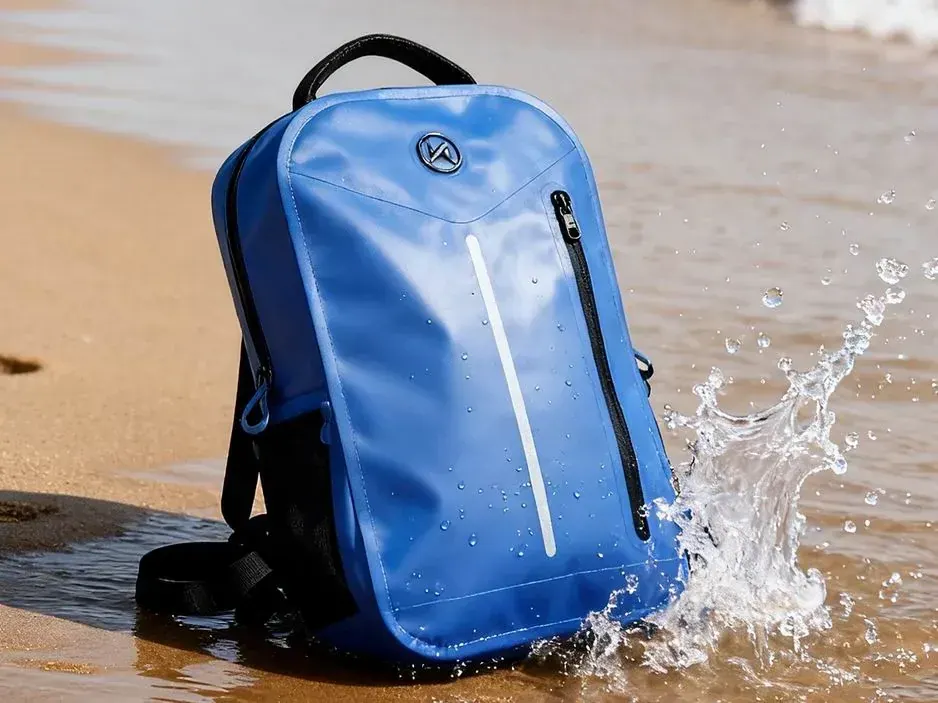

A finish fails visibly and gradually, which is useful, because the owner gets warning. Beading degrades to sheeting, the face cloth darkens, and the pack gains weight: a 30 litre body with a wetted-out face cloth carries an extra 150 to 350 grams of water held in the weave, and harness straps can hold another 60 to 120 grams. That weight is noticed on the shoulders long before any water appears inside, and it is the earliest practical sign that re-proofing is due.
A barrier fails invisibly and suddenly, which is why it needs testing rather than looking. Polyurethane films lose strength by hydrolysis, a reaction with moisture that accelerates above 30 degrees Celsius and above 70 percent relative humidity, so a pack stored wet in a hot garage ages several times faster than one stored dry. PVC films lose plasticiser, stiffen and crack at folds after four to eight years. Both show up as a leak that appears to have no cause, usually an aged membrane rather than an opened seam.
| Failure | Which part | Detectable by eye | Typical onset | Prevention |
|---|---|---|---|---|
| Wetting out of the face cloth | Finish | Yes, cloth darkens | 1 to 3 seasons | Re-proof, wash with technical detergent |
| Oil contamination from sunscreen | Finish | Yes, patchy dark areas | Weeks | Rinse the harness area, avoid DEET contact |
| Detergent residue | Finish | Yes, uniform darkening | After one wash | Use a rinse-only cycle, no fabric softener |
| Abrasion on straps and base | Finish | Yes, shiny worn patches | 200 to 600 hours | Accept it, re-proof locally |
| Hydrolysis of a PU film | Membrane | No | 3 to 6 years warm and damp | Store dry below 30 degrees and 70 percent RH |
| Plasticiser loss in PVC | Membrane | Partly, stiffness and odour | 4 to 8 years | Choose TPU above PVC for long life |
| Puncture or delamination | Membrane | Often no | Any time | Higher denier face cloth, bonded patches |
Reading a Spec Sheet Without Being Misled
Four claims appear repeatedly on waterproof pack hangtags, and three of them are surface claims rather than barrier claims. Water resistant, water repellent and quick drying all describe the finish and the face cloth. Only a hydrostatic figure, and ideally an ingress code, describes the barrier. The spray test that supports the first three is defined by AATCC test method 22, and it grades a 20 by 20 centimetre specimen after 25 to 30 millilitres of water has been sprayed at it from 15 centimetres.
| Hangtag claim | What it actually measures | Number to ask for instead | Acceptable figure |
|---|---|---|---|
| Water repellent | Surface beading only | Hydrostatic head in millimetres | 3,000 mm minimum for a pack |
| Water resistant | Surface plus light spray | Hydrostatic head and seam method | 5,000 mm and a welded seam |
| 10K or 10,000 mm | Barrier pressure, if genuine | Test standard and seam method | ISO 811, welded or taped seam |
| IPX4 | Splash from all directions | Whole-body immersion rating | IPX7 for a capsize-rated body |
| Quick drying | Nothing measurable | Absorption of the face cloth | Under 5 percent after 5 minutes |
A practical reading rule follows from that table: if the sheet quotes a spray rating, ask for the hydrostatic head; if it quotes a hydrostatic head, ask for the seam method; if it quotes an ingress code, ask which standard and which laboratory. Those three questions take two minutes and they resolve the great majority of ambiguous listings. The wider question of what the words mean in practice is set out in waterproof versus water resistant, and the pressure figures behind the millimetre numbers are explained in hydrostatic head explained.
- Ask for the hydrostatic figure in millimetres together with the standard used; a number without a standard is not a number.
- Ask for the seam method in the same sentence, because a 10,000 mm body with a plain stitched seam performs like a low-rated one.
- Ask whether the finish is PFAS-free if the goods are destined for EU or California retail, and budget 0.10 to 0.25 USD per unit.
Care, Re-Proofing and Service Life
The maintenance cycle is short and cheap, and it is the highest-value thing an owner can do. Wash with a technical detergent at 30 to 40 degrees on a rinse-only cycle, no softener, then tumble dry at 50 to 60 degrees for 30 to 60 minutes. Heat re-orients the polymer chains and recovers 20 to 40 degrees of contact angle without any new chemistry. If heat alone does not restore beading, apply a spray-on re-proofer at 50 to 100 millilitres per body in two light coats and heat set it.
| Interval | Action | Time | Effect | Note |
|---|---|---|---|---|
| After every saltwater or muddy trip | Rinse in fresh water, air dry | 10 minutes | Removes salt and grit that abrade the finish | Salt crystals cut fibres under load |
| Every 10 to 15 uses | Technical wash, rinse-only | 45 minutes | Removes oil and detergent residue | Never use softener |
| Every season | Heat reactivation, 50 to 60 degrees | 30 to 60 minutes | Recovers 20 to 40 degrees of contact angle | Try this before buying re-proofer |
| Every 1 to 2 seasons | Spray-on re-proof, 2 coats | 30 minutes plus drying | Restores 130 to 145 degrees | 50 to 100 ml per body |
| Every 2 years | Pressure decay check at 20 kilopascals | 6 minutes | Confirms the barrier is intact | Under 10 percent loss in 5 minutes |
| Long-term storage | Dry fully, store loose below 30 degrees | 30 minutes | Slows PU hydrolysis several-fold | Never store a damp pack sealed |
Storage is the step most often skipped and worth the most, because hydrolysis runs on heat and moisture rather than on use, and a pack dried and stored open outlasts one stored damp and sealed by a factor of two to three.
Cost, Compliance and Ordering
On a programme the two technologies are specified together, and the specification is cheap to write. Name the face cloth in denier and weave, the barrier with a hydrostatic figure and a test standard, the finish chemistry and whether it is PFAS-free, and the seam method with an acceptance figure. A five-line brief along those lines is enough to quote.
| Line item | Finish only | Finish plus TPU barrier | Delta per unit | Note |
|---|---|---|---|---|
| Materials | 0.12 to 0.80 USD | 1.32 to 4.30 USD | 1.20 to 3.50 USD | TPU film is 60 to 110 grams per square metre at 0.10 mm |
| Added weight on a 30 L body | Near zero | 155 to 275 grams | 155 to 275 grams | Driven by film thickness |
| Process step | Pad or spray, heat set | Laminate plus pad or spray | One extra pass | Lamination is done by the material vendor |
| Testing on goods-in | Visual, 2 minutes | Hydrostatic sample plus pressure decay | 6 to 12 minutes | AQL 2.5 sampling |
| Expected field rating | IPX3 to IPX4 | IPX6 to IPX8 with welded seams | Two to four codes | The seam decides the ceiling |
| Retail price band | 9 to 22 USD | 24 to 65 USD | 15 to 43 USD | Roughly 3 to 5 times the unit cost |
- Programmes start at 500 pcs per design and colourway, with samples in 6 to 10 working days and bulk in 35 to 50 days.
- Materials are screened against REACH and California Prop 65, and monthly output of 200,000 units is verified by SGS.
- Every body is inspected at AQL 2.5 and hydrostatic tested on a sample basis, with a welded seam acceptance of 90 percent of base cloth peel strength.
The closing rule is worth stating once more in purchasing language. A finish makes water bead on the outside and is renewed by the owner; a barrier keeps water out of the inside, is built into the body and cannot be renewed. Quote a spray rating if you like, but never accept one in place of a hydrostatic figure, and never accept that figure without the seam method beside it. Finish chemistry, film lamination and the test rigs used to verify both are shown. Enquiries go to service@junyuanbags.com. The full selection logic, from rating through to closure and volume, is collected in the waterproof backpack buying guide.
People Also Ask
Is a DWR finish the same as a waterproof coating?
No. A DWR finish is a surface treatment on the outer fibres that makes water bead, graded 0 to 100 by AATCC 22 spray. A waterproof coating or laminate is a continuous film behind the face cloth, graded in millimetres of hydrostatic head under ISO 811. One changes the surface, the other is the barrier.
How many millimetres of hydrostatic head does a backpack need?
3,000 millimetres is the practical minimum for a pack, which equals about 29 kilopascals and covers sustained rain and a wet base panel. 5,000 millimetres suits general outdoor use, and 10,000 to 20,000 millimetres is specified where the body may be submerged or pressed hard against a wet surface.
Why does my pack bead water outside but still get wet inside?
Because the beading comes from the finish and the entry comes from somewhere else. The usual causes are a stitched seam with no seal, a closure that is not rated, and pressure applied to the base panel when the pack is set down in water. A spray rating never predicts any of the three.
How long does a DWR finish last on a backpack?
One to three seasons, meaning 200 to 600 hours of field use, and 10 to 30 home washes for a C6 finish. Abrasion on the straps and base removes the finish before washing does, and contact angle typically falls below 90 degrees after 5,000 to 15,000 Martindale cycles on a high-wear panel.
Can you restore a worn DWR finish at home?
Yes, in two steps and about 90 minutes. Wash with a technical detergent on a rinse-only cycle, then heat reactivate at 50 to 60 degrees for 30 to 60 minutes, which recovers 20 to 40 degrees of contact angle. If beading is still poor, apply a spray-on re-proofer at 50 to 100 millilitres per body in two coats and heat set it.
Does a thicker membrane always mean a better pack?
Not necessarily. Going from 0.10 to 0.25 millimetres of TPU raises the hydrostatic head from about 5,000 to 20,000 millimetres but adds 105 to 165 grams per square metre and makes the body stiffer. On a pack the seam method usually limits performance long before the film does, so weld the seam before thickening the film.
Frequently Asked Questions
Q1. What is the difference between a DWR finish and a waterproof membrane?
A DWR finish is a low-surface-energy treatment on the outer face cloth that raises the contact angle to 140 to 150 degrees so water beads and runs off. A waterproof membrane is a continuous TPU, PU or PVC film 0.05 to 0.25 millimetres thick laminated behind the cloth. The finish slows wetting, the membrane blocks water under pressure.
Q2. Which test measures a DWR finish?
AATCC test method 22, the spray test, which grades a specimen from 0 to 100 after 25 to 30 millilitres of water is sprayed at it from 15 centimetres. ISO 4920 gives the same idea on a 1 to 5 scale. A rating of 100 means no sticking or wetting of the upper surface, and 70 means partial wetting beyond the spray points.
Q3. Which test measures a waterproof membrane?
Hydrostatic head, standardised as ISO 811 in Europe and AATCC 127 in the United States. A column of water is raised against one face of the cloth until three drops appear on the other, and the height in millimetres is the result. One thousand millimetres equals 9.8 kilopascals, and ten thousand millimetres is about one bar.
Q4. Can a pack score 100 on the spray test and still leak?
Yes, and it is common. The spray test applies no pressure and grades appearance only. A body with a perfect finish and a plain stitched seam will pass water at 500 millimetres of head, which is well under the 9,800 pascals generated by a loaded pack standing in one metre of water.
Q5. How much water does a wetted-out face cloth hold?
On a 30 litre body, 150 to 350 grams, plus 60 to 120 grams in the harness straps. That weight is felt on the shoulders before any moisture appears inside, and it is the earliest practical sign that re-proofing is due.
Q6. What is the service life of a TPU membrane?
Five to ten years when stored dry below 30 degrees Celsius and 70 percent relative humidity. Polyurethane films lose strength by hydrolysis, a reaction with water vapour that accelerates sharply in warm damp storage, so a pack dried and stored open lasts two to three times longer than the same pack stored damp and sealed.
Q7. What is the service life of a PVC barrier?
Four to eight years, limited by plasticiser loss rather than by hydrolysis. As the plasticiser migrates out, the sheet stiffens, takes a permanent fold and cracks at a crease. TPU is the better choice wherever long service life is specified.
Q8. Are PFAS-free finishes as good as fluorinated ones?
Close, with a small penalty. A C0 or silicone finish gives an initial contact angle of 130 to 140 degrees against 145 to 150 for C6, and wash durability of 10 to 20 cycles against 20 to 30. The cost difference is 0.10 to 0.25 USD per unit and the compliance difference matters for EU and California retail.
Q9. What does a finish or a barrier add to unit cost?
A finish adds 0.12 to 0.80 USD depending on chemistry. A TPU barrier adds 1.20 to 3.50 USD plus 155 to 275 grams on a 30 litre body. On a typical unit price of 8 to 20 USD the combined difference is 4 to 25 percent, which is why price-led lines carry a finish and no barrier.
Q10. Should I specify a thicker film or a welded seam first?
The seam, always. A 10,000 millimetre body with a plain stitched seam performs like a low-rated one, while a 5,000 millimetre body with a radio-frequency welded seam reaches IPX7. Welding costs 3,000 to 12,000 USD in tooling and raises unit cost by 5 to 25 percent, and it buys two to four extra ingress codes.
Q11. What is the MOQ and lead time for a waterproof backpack programme?
500 pcs per design and colourway, with samples in 6 to 10 working days and bulk in 35 to 50 days. Materials are screened against REACH and California Prop 65, goods are inspected at AQL 2.5, and shipments are FOB Xiamen or DDP to more than 100 countries.
